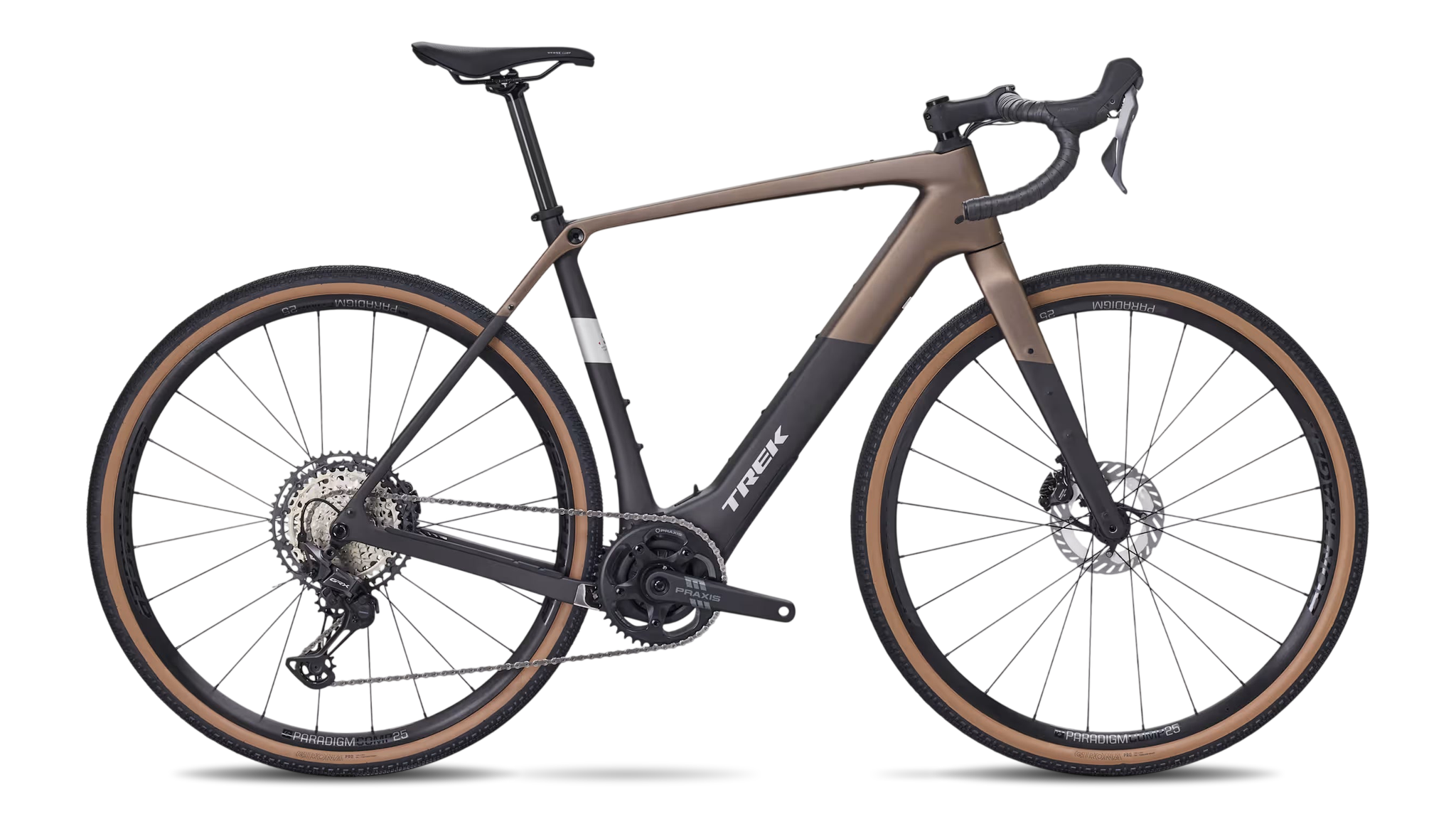

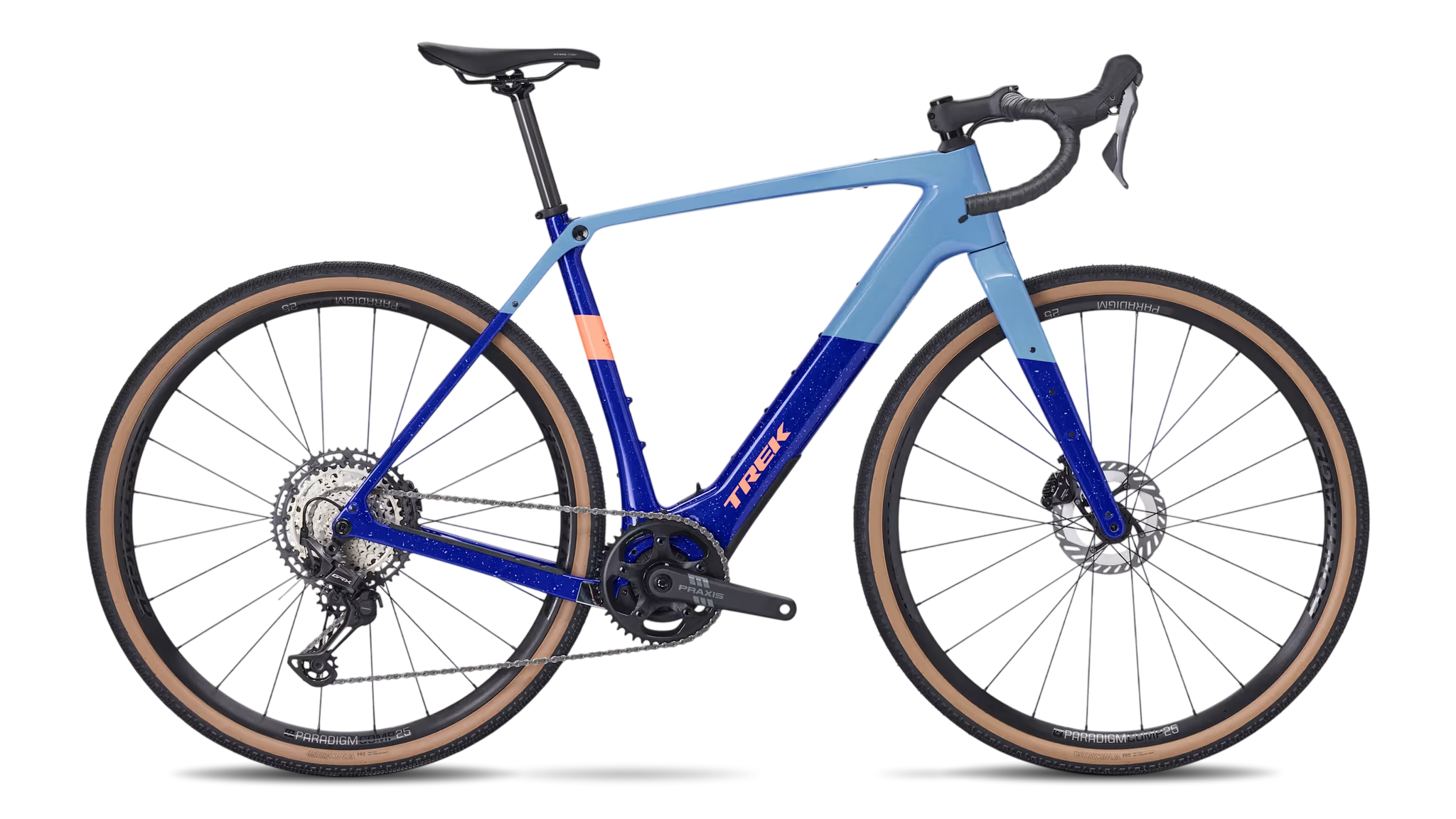

Trek | Checkpoint+ | SL 5
- Regular price
- $6,999.99 CAD
- Sale price
- $6,999.99 CAD
- Regular price
-
Couldn't load pickup availability
The Checkpoint+ SL 5 is an electric gravel bike designed for long-distance riding. It features a TQ HPR60 motor for smooth, quiet acceleration and a 360Wh battery to power you through your longest rides. It's ready to go with an OCLV Carbon frame, durable aluminum wheels, a 12-speed Shimano GRX single-chainring drivetrain, and endurance geometry that ensures comfort on long journeys.
- Frame
-
OCLV Carbon 500 Series, TQ drivetrain, tapered head tube, IsoSpeed, internal cable routing, flat-mount disc brake, fender mounts, 142x12 mm chamfered thru axle
- Fork
- Weight
- ML - 13.81 kg / 30.45 lbs (with TLR sealant, without inner tubes)
- Maximum weight
- This bicycle has a maximum total weight limit (bicycle, cyclist and luggage) of 125 kg.
- Battery
- Charger
-
TQ 4A Charger
- Counter
- Engine
-
TQ-HPR60, 60 Nm, 300 watts maximum continuous power, 350 watts peak power
- Gear shift
-
Shimano GRX RX820, 12 speed
- rear derailleur
-
Shimano GRX RX822, 51t sprocket max.
- *Crankset
-
Size: XS, S
Praxis alloy, 165 mm longSize: M, ML
Praxis alloy, 170 mm longSize: L, XL
Praxis alloy, 172.5 mm long - Cassette
- Chain
- Maximum tray size
- 1x: 44 teeth
- Front wheel
- Rear wheel
-
Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, SRAM XD-R 12-speed freehub body, 142x12mm thru axle
- Front wheel lock
- Rear wheel lock
- Tire
-
Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm
- Tire part
-
Bontrager TLR Sealant, 177 ml
- Rim tape
- Maximum tire size
- 50 mm without mudguard, 42 mm with mudguard (measured, see manual for details)
- Saddle
- Seat post
-
Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length
- *Hanger
- Handlebar tape
-
Bontrager Supertack Perf handlebar tape
- *Gallows
- Brake disc
- Brake lever
-
Shimano GRX RX820, 12 speed
- Disc characteristics
- Maximum brake disc size: 180 mm front and rear
We reserve the right to modify the information on this site at any time without notice, including information regarding equipment, specifications, models, colors, materials, and prices. Due to supply issues, some compatible parts may be substituted at any time without prior notice.
The weights of the bicycles and frames are those of the pre-production painted frames at the time of publication. Weights may vary in final production.
Gear up for adventure, whatever your terrain.
